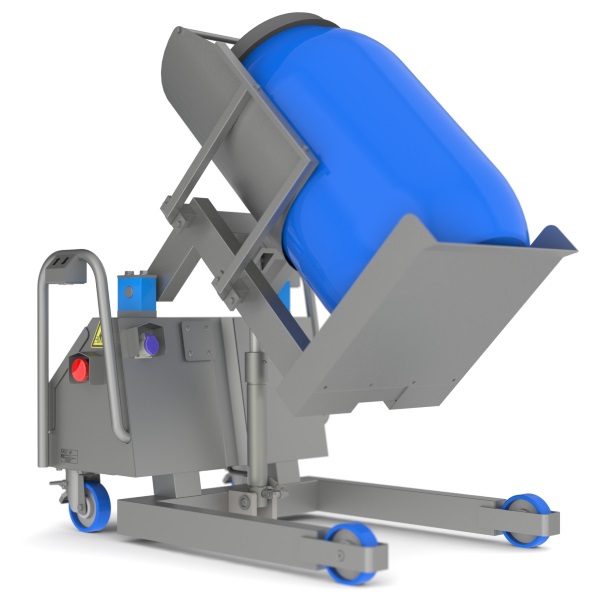

Backsaver BRL Barrel Tipper

The Backsaver BRL tipping machine is designed for emptying barrels, drums or cylinder-shaped containers.
Backsaver BRL Barrel Tipper
Backsaver BRL Barrel Tipper
Backsaver BRL Barrel Tipper
Description

A barrel of product is slid onto the tipper’s platform and moved around the facility to the location where it has to be emptied. The load is then tipped in a smooth motion until the product starts to come out or even further to the maximum set angle. Because manual lifting, crouching and bending are no longer necessary, the risk of back pain, strain and injury is reduced. Healthy personnel are happier, more efficient and productive, and throughput is maximized.



Specifications:

  • Approx. Dumping Height: 970 mm / 38.2"
  • Tipping Angle: 0-100 deg.
  • Load Rating: 300 kg / 630 lbs
  • IP Rating: IP56 (limited dust ingress; strong water jets, any direction)
  • Power Source: 12-volt deep-cycle / semi-traction battery
  • Approx. Machine Weight: 200 kg / 440 lbs



Standard Features:

  • Single hydraulic cylinder
  • Backup sound alarm
  • Heavy-duty locking casters
  • Powerful rechargeable battery
  • Independent controls on each side
  • Dead man’s (hold-to-run) buttons (Up/Down)
