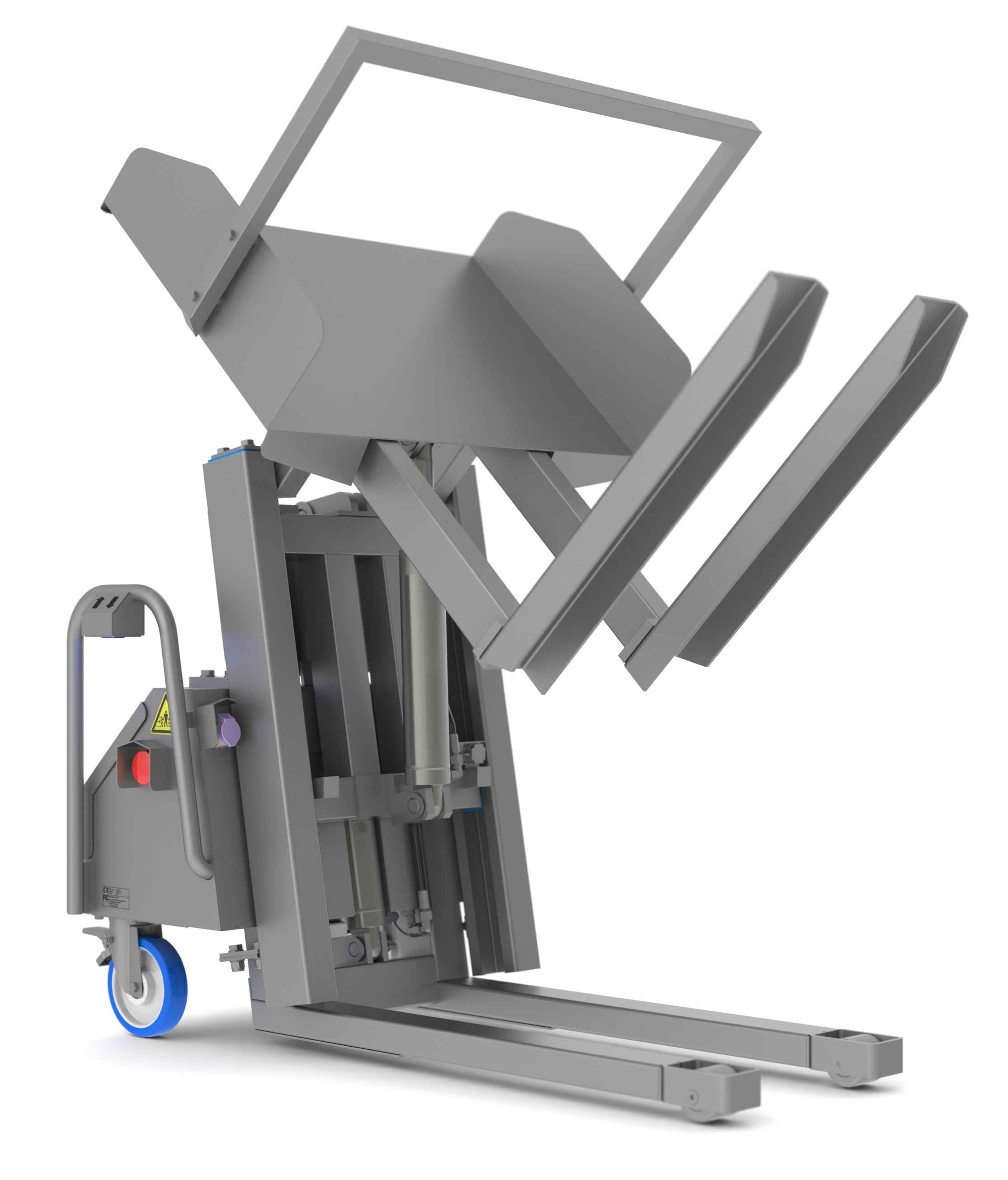

Backsaver LT Lifter/Tipper
The Backsaver LT lifting/tipping machine is designed to empty large bins when the Backsaver ST tipper’s dumping height is insufficient.
Description
The LT machine is equipped with a van Oirschot specialty lift-and-tip system that makes it possible to raise a large, heavy bin to a certain height and then tilt it. It’s a compact solution for major tasks. It’s also ideal for use at different locations or for installation at a specific, traffic-heavy location.
Standard Features:
- Twin hydraulic cylinders (1 ea. for lifting and tipping)
- Backup sound alarm
- LED flashing beacon light
- Heavy-duty locking casters
- Powerful rechargeable battery
- Independent controls on each side
- Dead man’s (hold-to-run) buttons (Up/Down)
Available Options:
- Extended-stroke lifting cylinder for dumping at heights of up to 1,410 mm at 100 degrees
- Tapered discharge chute / narrowed spout for improved product flow
- Extended discharge chute: up to 100 mm (4″) without changing the machine’s frame
- Raised discharge chute sides for improved product containment
- Adjustable, swinging or customized retaining bar for various bin sizes
- Different max. tipping angles: 90, 100 and 108 degrees
